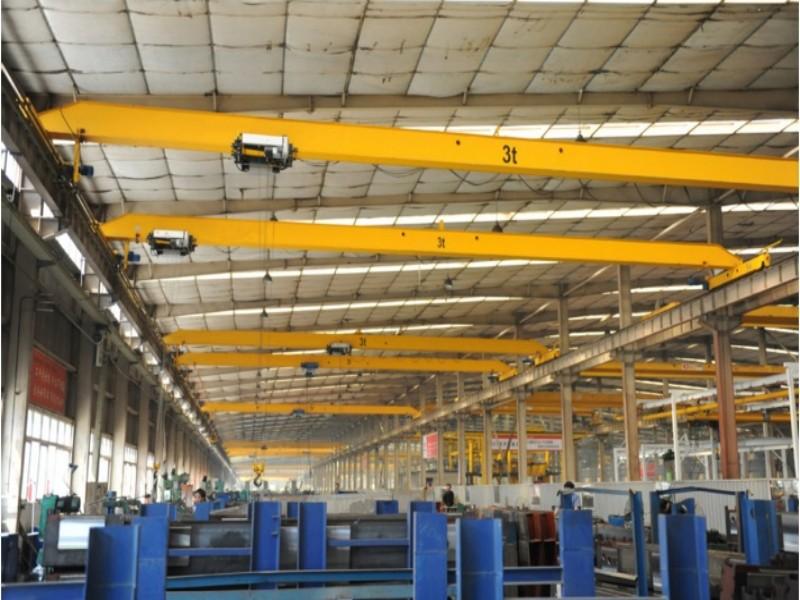

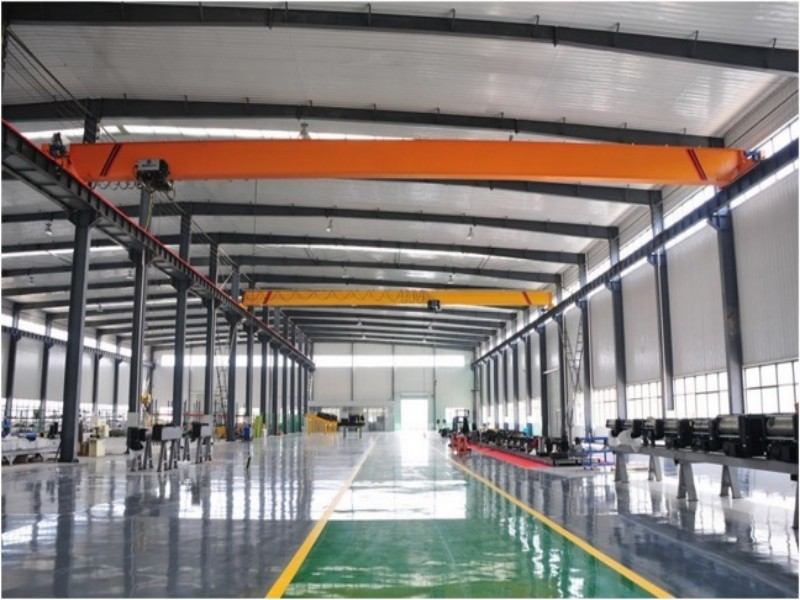

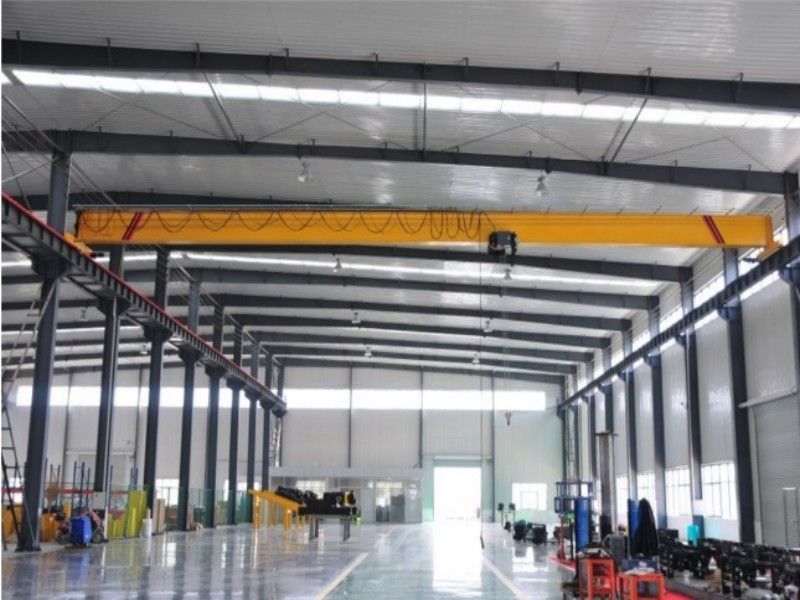

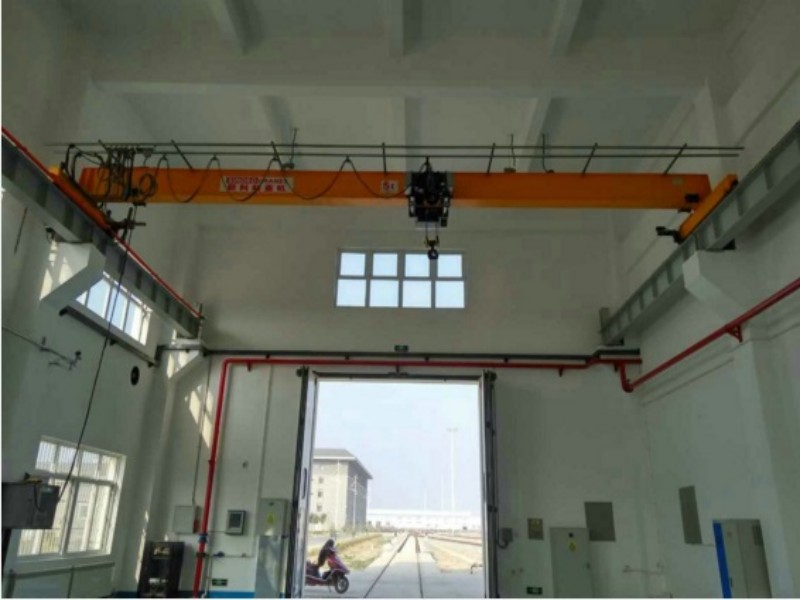

Remote Control Overhead Crane

Remote Control Overhead Crane

Remote control overhead cranes utilize a wireless remote control system to direct the movements of the crane and hoist. It allows the operator to stay away from the load and maintain good visibility. The crane is also very easy to operate, requiring only one operator to get the job done. Our overhead cranes are available in a variety of configurations to meet your specified facility conditions and operational needs, including single girder, double girder, top run and underslung systems.

Remote control overhead cranes is the ideal lifting equipment in factories, mines, agriculture, electric power, construction building site, dock and warehouse for installation of the machines, lifting the cargos, loading and unloading the trucks.

Overview:

1. Hoist - The hoist mechanism is a unit consisting of a motor drive, coupling, brakes, gearing, drum, ropes, and load block designed to raise, hold and lower the maximum rated load. Hoist mechanism is mounted to the trolley.
2. Trolley - The unit carrying the hoisting mechanism which travels on the bridge rails in a direction at right angles to the crane runway. Trolley frame is the basic structure of the trolley on which are mounted the hoisting and traversing mechanisms.
3. Bumper (Buffer) - An energy absorbing device for reducing impact when a moving crane or trolley reaches the end of its permitted travel, or when two moving cranes or trolleys come into contact. This device may be attached to the bridge, trolley or runway stop.
4. Runway Rail - The rail supported by the runway beams on which the crane travels.HO3VJO6]YA2[I}$C{]L$]82.png

Features

One of the most important advantages is increased safety as it allows the operator to stay away from the load while controlling the crane. The crane operator is able to move around to get a better view of the load and surroundings, and to make sure the path is clear.


Remote control will free the operator from the constraints of hanging control cables or cabins.


The overhead crane is easy to operate and has low operating cost.


Overhead cranes with remote controls improve working conditions and are ideal for high-risk applications.


Specification

Remote Control Single Girder Overhead Crane Specification


TypeDouble Girder Crane
Spanup to 35 m
Lifting speed5/0.38 m/min or customized
Traveling speed0~40 m/min
Cross Speed0~100 M/Min (VVVF)
Working ClassM3-M6
SpecificationCE, ISO


Remote Control Double Girder Overhead Crane Specification


Capacity 1~20 tons
Lift height Max. 90 m
Span 7.5~40m
Work duty M3~M6
Protection class IP54/IP55
Working temperature -20~+60℃
