Overview:

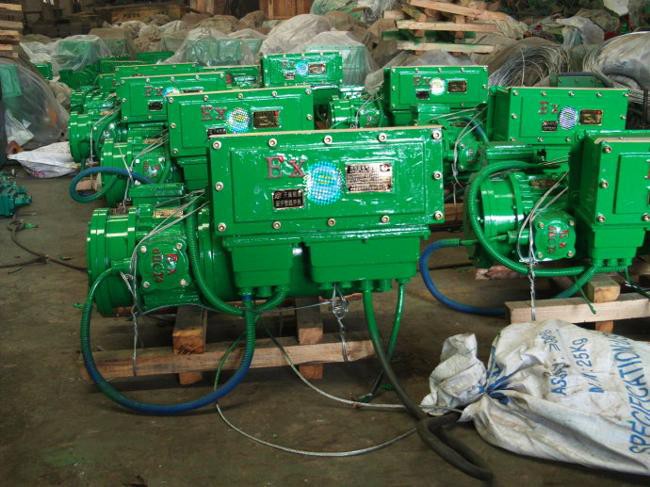

HB explosion-proof electric hoist introduction:
HB type explosion-proof electric hoist is suitable for explosive mixture containing flammable gas, steam and air. HB series explosion-proof electric hoist is suitable for class IIA, IIB and IIC, and temperature groups are T1～T4 combustible, the location of an explosive gas mixture of sexual gas or steam and air. HB type explosion-proof electric hoist can be divided into B grade, C grade. HB type explosion-proof electric hoist is generally applicable to Zone 1 and Zone 2. The applicable temperature of explosion-proof electric hoist is mainly from T1-T6, reaching the maximum temperature limit of T6. Let's say DIICT4 this represents: d represents the explosion-proof type. II represents Class II explosion protection, ie, factory explosion protection. C stands for Explosion-proof Zone C, which can be used for the most dangerous areas. T4 represents the temperature group. At present, explosion-proof electric hoists use more DIICT4 ratings.
Features
Explosion-proof electric hoist features:
BCD explosion-proof electric hoist, BMD explosion-proof electric hoist, HB type (mine) explosion-proof electric hoist, the national explosion-proof electrical product quality supervision and inspection center review, model identified as HB type and HBS type. The structure and technical parameters are exactly the same as BCD explosion-proof electric hoist and BMD explosion-proof electric hoist.
HB explosion-proof electric hoist explosion-proof level classification and hazardous gas classification: EX IIBT4 ethane, propane, butane, heptane, ethylene, carbon monoxide, gasoline, acetone, styrene, toluene, benzene, methanol, ethanol, vinyl chloride, acetaldehyde Wait. EX IICT4 Gases other than hydrogen, water gas, and EX IIBT4.
HB type explosion-proof electric hoist implementation standards:
1. JB/T5897-91 "Explosion-proof Bridge Crane"
2. JB/T10219-2001 "Explosion-proof Beam Crane"
3, JB/T10222-2001 "explosion-proof wire rope electric hoist"
4, GB/T5663-94 "electric hoist gantry crane"
5. GB3811-83 Crane Design Specification
6, GB6067-85 "crane safety regulations"
7. GB3836.1-2000 "Electrical Equipment for Explosive Gas Environments Part 1: General Requirements"
8. GB3836.2-2000 "Electrical Equipment for Explosive Gas Environments Part 2: Flameproof Type "d""
The explosion-proof motor and explosion-proof electrical equipment used by our company's explosion-proof electric hoist products have all obtained the explosion-proof certificate and MA certificate issued by the country. The license issued by the State Administration of Technical Supervision.
Specification
Model | Cap/ton | Unit/mm | Chain Dia. | ||||||||||
H | A | B | D | E | K | L | N | M | J | Q | |||
01-01 | 1 | 600 | 600 | 330 | 300 | 176 | Φ40 | 31 | 24 | / | / | / | 7.1 |
02-02 | 2 | 750 | 600 | 330 | 300 | 230 | Φ49 | 35 | 30 | / | / | / | 7.1 |
03-01 | 3 | 920 | 600 | 330 | 350 | 280 | Φ59 | 42 | 35 | / | / | / | 7.1 |
03-02 | 3 | 845 | 675 | 325 | 430 | 265 | Φ59 | 42 | 35 | / | / | / | 11.2 |
03-03 | 3 | 950 | 675 | 325 | 430 | 320 | Φ59 | 42 | 35 | / | / | / | 10 |
05-02 | 5 | 1030 | 675 | 325 | 430 | 325 | Φ60 | 45 | 43 | / | / | / | 11.2 |
7.5-03 | 7.5 | 1200 | 675 | 350 | 500 | 320 | Φ90 | 70 | 50 | / | / | / | 11.2 |
10-04 | 10 | 1400 | 725 | 350 | 890 | 445 | Φ90 | 70 | 50 | / | / | / | 11.2 |
15-06 | 15 | 1360 | 725 | 350 | 1030 | / | Φ110 | 80 | 85 | 88 | Φ70 | 520 | 11.2 |
20-08 | 20 | 1250 | 725 | 350 | 1220 | / | Φ110 | 80 | 85 | 88 | Φ70 | / | 11.2 |
25-10 | 25 | 1700 | 725 | 350 | 1315 | / | Φ140 | 100 | 95 | 96 | Φ80 | / | 11.2 |
30-12 | 30 | 1640 | 915 | 458 | 1380 | / | Φ140 | 100 | 95 | 228 | Φ90 | / | 11.2 |
35-16 | 35 | 1790 | 915 | 458 | 1600 | / | Φ200 | 140 | 135 | 235 | Φ100 | 440 | 11.2 |
About the explosion-proof electric chain hoist price or you use the explosion-proof electric chain hoist, installation, maintenance call the explosion-proof electric chain hoist factory sales staff to consult! contact us.
FAQs
What is an Explosion-Proof Wire Rope Electric Hoist?
A hoist designed for hazardous environments where explosive materials are present, offering safe lifting with a wire rope system.
Where is this hoist used?
Commonly used in industries such as oil & gas, chemicals, mining, and others with explosive risks.
How does the explosion-proof feature work?
The hoist has specially designed components and enclosures to prevent sparks, ensuring safety in explosive atmospheres.
What is the maximum lifting capacity?
The lifting capacity varies depending on the model, with options to handle a wide range of loads.
Is this hoist suitable for outdoor use?
Yes, it is built for use in both indoor and outdoor environments, even under harsh conditions.
What kind of maintenance is required?
Regular inspections of wiring, rope, and explosion-proof components are needed to maintain safe operation.
