Overview
Material Density Scope: 0.8t/m3~3.0t/m3
Features

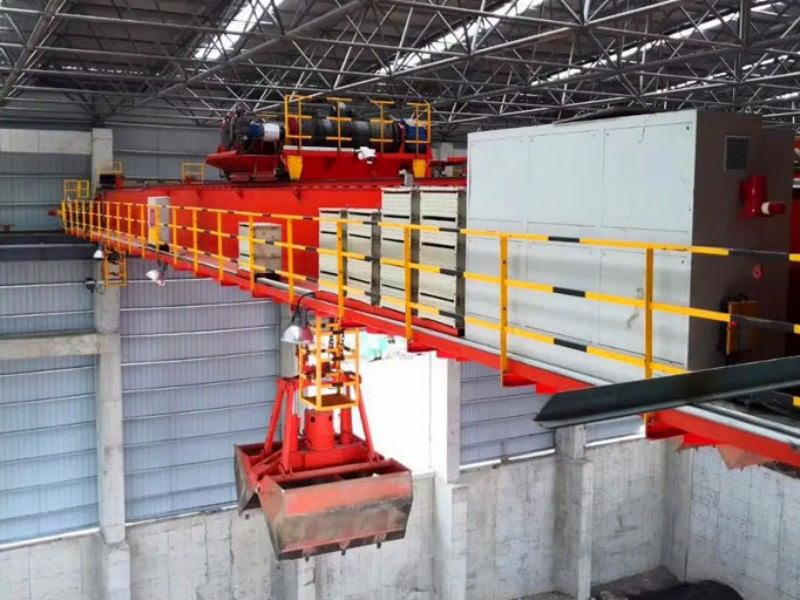

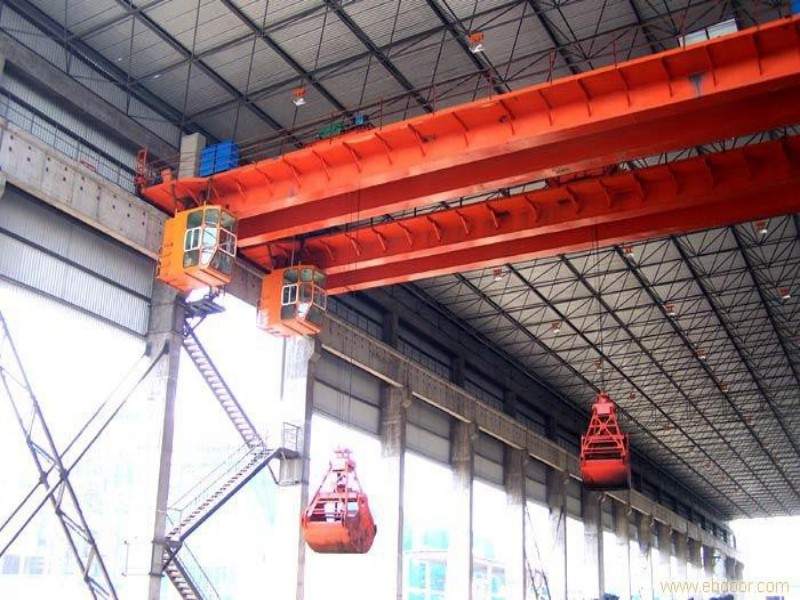

1.Clamshell grab crane
Applicable to the port, dock, station yard, mine loading various aspects such as bulk, minerals, coal, ballast, conditions, etc.,

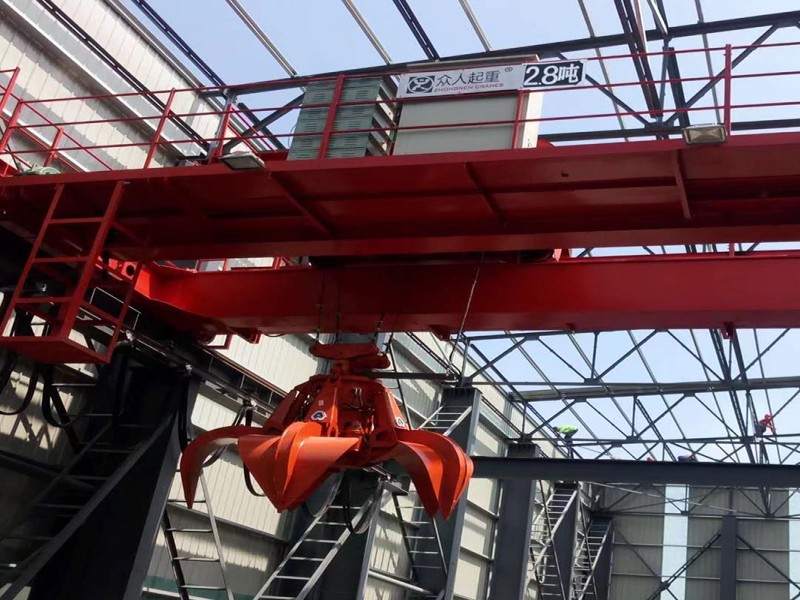

2.The orange peel type grab crane
Suitable for steel scrap grab and refined work, a large amount of waste, waste landfill and construction sites torpedo, loading and unloading and handling work, automotive recycling field, the collapse of torpedo and recycling, bucket tooth can be replaced, and high hardness, wear resistant steel, to ensure that the service life is long; Valve shell can choose according to different work environment; There are whole closed type valve shell, semi-closure type valve shell, valve shell and narrow width side lobe shell.
Specification
Liting Capacity | t | 5 | 10 | 16 | 20 | ||
Max.Lifting Height | m | 20 | 18 | 22 | 26 | ||
Span | m | 10.5-31.5 | |||||
Working System | A5-A7 | ||||||
Speed | Trolley | Hoisting | m/min | 40.1 | 40.7 | 41.8 | 48.6 |
Travelling | 44.6 | 45.7 | 43.2 | 43.2 | |||
Bridge travelling | 93.7-114.4 | 112.5-101 | 98-87.3 | 87.3 | |||
Weight | Trolley | 5.2/5.9 | 8.2/9.1 | 14.8/15.9 | 19.3/20.4 | ||
Total | Indoor | 19.9-41.3 | 26.5-50.4 | 47.3-67.9 | 56.1-75.6 | ||
Outdoor | 20.7-42.1 | 27.4-51.2 | 48.5-69 | 57.3-76.8 | |||
Grab | Volume | m 3 | 2.5-0.75 | 5-1.5 | 8-2.5 | 10--3 | |
Dead weight | kg | 2632-2546 | 4800-4793 | 7841-8305 | 9812-10123 | ||
Rail recommended | 43kg/m, QU70 | ||||||
CASE
Explore how our cranes perform in real-world projects across various industries. From bulk material handling to heavy-duty lifting, our case studies show how Sinoko Crane delivers efficient, safe, and customized solutions. Discover how we turn lifting challenges into success.
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a QuoteFAQs
This crane is ideal for handling bulk materials such as coal, minerals, logs, ballast, powder, and granular materials. It sees wide use in ports, docks, station yards, mines, steel mills, power plants, and onboard vessels.
The clamshell grab features a lightweight but strong single‑twisted‑axis bucket structure with a high grabbing ratio, strong closing force, and high material filling rate. For specialized use, options include dust covers and sealing edges for marine or harsh environments.
Standard lifting capacities range from 5 to 64 t. For the 10 t model specifically, max lifting height is around 18 m, spans between 10.5 m and 31.5 m, and the working system meets A5–A7 duty classifications.
For the 10 t variant, hoisting speed is approximately 40.7 m/min, trolley traveling speed about 45.7 m/min, and bridge traveling speed varies between 112.5 and 101 m/min, depending on configuration.
The grab volume for the 10 t model ranges between 5 and 1.5 m³. The dead weight of the grab ranges from about 4,793 kg to 4,800 kg. These factors directly influence load capacity, efficiency, and structural requirements.
Ideal for bulk material handling in industries like shipping, mining, steel production, power generation, and construction. The customizable grab—complete with sealing or dust‑proof options—ensures optimal performance under demanding environmental conditions.
