QX Magnetic Overhead Crane

QX Magnetic Overhead Crane

QX Magnetic Overhead Crane is suitable for transferring cast ingots, steel billets and various kinds of scrapped steel.

Widely use in steel plants, melting plant, waste warehouse, billet processing workshop.

High working efficiency, safe and reliable operation.

Overview:

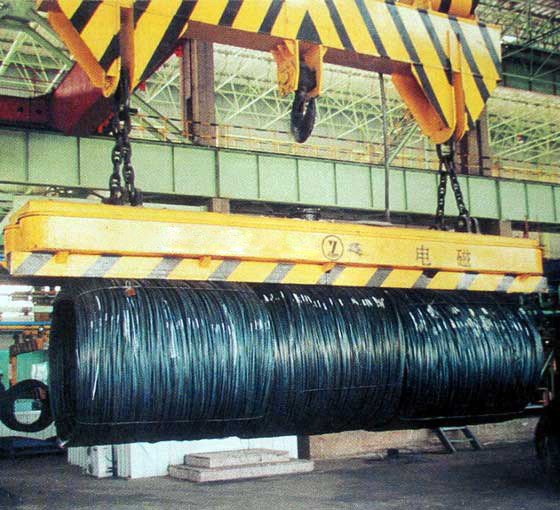

QX Magnetic Overhead Crane mainly consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuck.


When used, the rotary part of the hanger of electromagnetic disk must be locked up with screws and no rotation is allowed.


The crane mainly relies on the magnet, using the electromagnetic principles, then through electricity and magnetic plate to suck the goods firmly hanging to the designated place.


Cut the electricity, steel and irons will be lay down. It is the most convenient crane to transfer the scattered sheet metal.


Application:

QL Model Rotating electromagnetic hanging beam overhead crane is applicable to the fixed span at indoors or outdoors of steel mill, Shipyard, port, workshop,yard and storage, etc.


Crane with slewing carrier-beam

QL Model Rotating electromagnetic hanging beam overhead crane is widely used to transport, assemble, load and unload billet steel, waste steel and other magnetic materials at workshop, warehouses, and goods yard, etc.


QL Model Rotating electromagnetic hanging beam overhead crane is especially applicable to lift material or different specifications and which needs horizontal rotation. The carrier-beam is cross structure has a certain function of preventing swinging. The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs, etc.



Features

Widely use in steel plants, melting plant, waste warehouse, billet processing workshop


High working efficiency, safe and reliable operation


This crane mainly consists of strong bridge beams, crane travelling mechanism, electric trolley and electric system and magnetic disk system, and could be classified into several working duties, e.g. A5, A6, A7, according to the working frequency and pure working time


It is special magnetic pole is suitable for round coil with different diameters; selection of electromagnet depends on the length of round coil. If the electromagnet is long enough at a time


Weight overload protection device Includes automatic stopping type lifting weight limiter and weight display device.


Lifting limit switch and traveling limit switch


Emergency stop system


Electrical protection

The main insulation switch, emergency stop switch, short circuit, Zero voltage protection, loss of field protection, Current overload protection, over speed protection, zero position protection


Phase sequence protection and adopted crane specially anti- vibration contactor etc.


Interlock device

It sets interlock device for the cabin door and the other door from cabin into bridge structure, when the door is opened, the crane cannot work.


Specification

Capacityt10+1012.5+12.513.5+13.5
Spanm28.5
Lifting heightm161013
Working class
A6A7A7
SpeedHoistingm/min11.4
Rotation0.8r/min
Traveling of crab38
Traveling of crane88
Recommended railQU80
Power supply3-Phase 380V 50HZ
Control wayPendent line control, Cabin control and remote control
Working dutyA6/A7
