Grab Bucket Crane

Grab Bucket Crane

Grab crane is equipped with grab bucket and hoisting machinery, widely used in port, dock, station yard, mine loading various aspects such as bulk, logs, minerals, coal, ballast, conditions, etc.

Overview:

Grab crane is equipped with grab bucket and hoisting machinery, widely used in port, dock, station yard, mine loading various aspects such as bulk, logs, minerals, coal, ballast, conditions, etc.

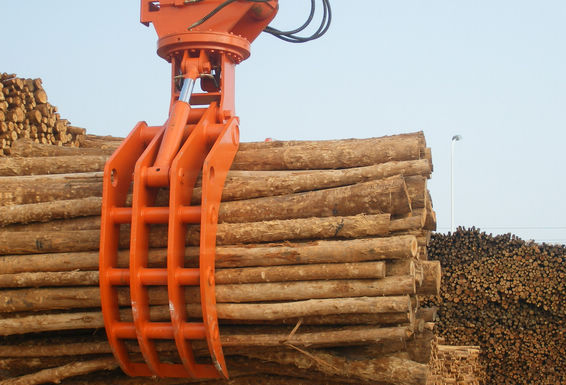

This type of straw bundle overhead crane is designed for grabbing all kind of specification wood, straw bundle, long bulk material. it can grab single wood, or much. The grab is working with tower crane, gantry crane. Very suitable for loading and unloading wood in log yard or wharf.
Cross-sectional size: 0.4m 2 ~2.0m 2
Motor Power: 2.2 kw~22kw
Dia. Of wood:  Φ700mm~Φ2200mm

Features

1. Strong box type, welding by machine hand.
2. Wheels, wirerope drum, gears, couplings are manufactured by our CNC manchine center, TOP quality control.
3. Heavy duty slipring motor,  ABB, Siemens and SEW
4. Siemens main electric system.
5. Surface treatment: Sand blasting
6. Pendent control, wireless, cabin control.

Specification



Liting Capacity (T)

5

10

16

16/3.2

20/5

32/5

Working System

M7-M8

M7-M8

Span (M)

10.5-31.5

10.5-31.5

Max.Lifting Height  (M)

16

16/18

12/14.0

16/18

Speed (M/min)

Hoisting

Aux.Hook







19.5

Trolley Travelling

39.5

43.8

45

44.6

44.6

42.6

Bridge travelling

115.6-116.8

115.6-116.8

112.5-101.4

101.5-112.5

112.5-101.4

101.4-86.8

Weight (T)

Trolley

2.384

3.839

5055

6.822

7.885

12.21

Total

13.36-32.97

15.14-36

20.6-42.3

20.61-42.82

21.86-46.04

28.92-57.14

Max Wheel Load (Kn)

74.5-128.5

104-165

143-213

146-214

170-245

245-341

Rail recommended

38kg/m

43kg/m

43kg/m QU70

Power Source

3Phase  380V   50HZ or as your   request
