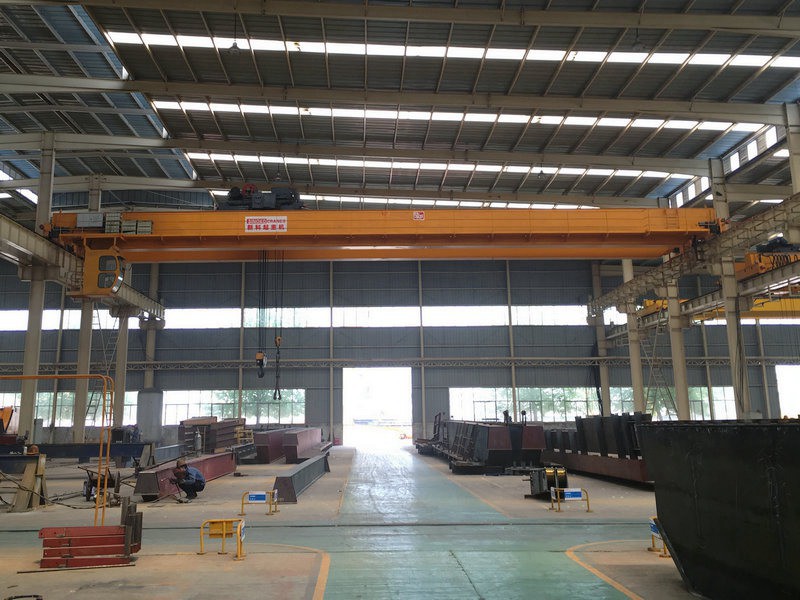

Workshop European Double Girder Overhead Traveling Crane

Workshop European Double Girder Overhead Traveling Crane

European type cranes have such design concepts as small dimension, light dead weight. Compared with traditional cranes, the limiting distance is minimum from hook to wall, and  headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace.
The lifting trolley uses Konecrane brand SWF trolley to make sure the quality best. The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.


Overview:

High Quality Overhead Traveling Crane Supplier

In general
  1. Optimized      designing, DIN/FEM standard, smaller wheel load, space saving

  2. Max.      Safe working load 80T

  3. Flexible      solution for all lifting needs

  4. Excellent      driving properties, stepless control, smoothly moving


Mechanical feature
  1. Double      welding box girder, DIN/FEM standard deflection

  2. Material      Fe37 or Fe52

  3. Whole      length CNC cutting for complete web plate, high deflection accuracy

  4. High      quality autometic welding and NDT inspection

  5. Shot-blasting      Sa2.5 for complete girder after welding, stress release

  6. Compacted      gearmotor driving, stepless control, hardern gear, safety disck      brake

  7. High      proection class IP55, F class, 40% ED

  8. 10.9      class High tension bolts mouting between girder and legs, life time safety      connection

  9. Shot-blasting      Sa2.5 for complete girder after welding, stress release


Electrification and outfitting:
  1. Conduct      power supply

  2. Phase      control guard opens the main contactor in case of phase failure

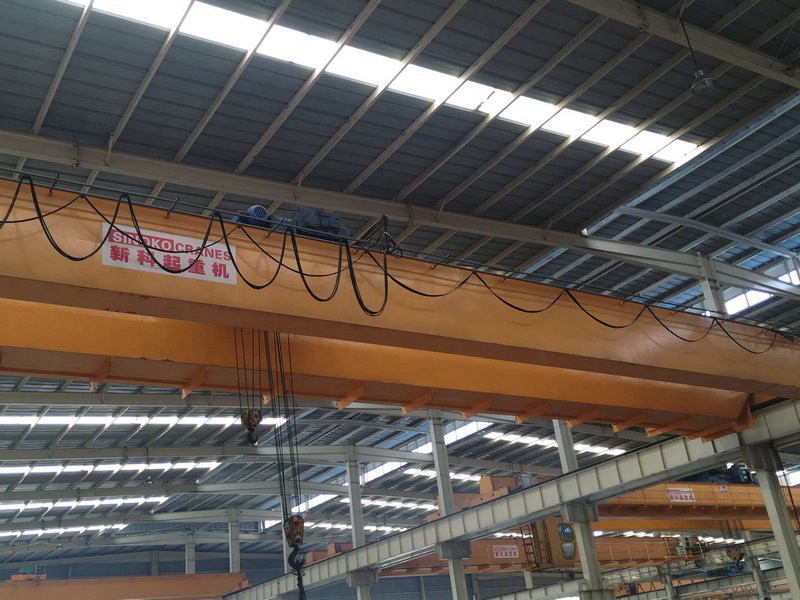

  3. The      flat cables used for festoons are PVC insulated flexible flat cables rated      for 450/750V, specially designed for cranes, hoists.

  4. clean      and smooth flat cable power supply      system

  5. Cables      are coded either with numbers, colours or tags for easy identification.

  6. All      hoist and crane movements are independent and can be run simultaneously.

  7. The      control panels are finished to withstand corrosion,      IP55

  8. The      components are positioned in a maintenance friendly way, and the whole      layout provides good protection against accidental contact.

  9. The      multi-wire type fixed cables with plastic insulation are intended for      crane usage.


High Security
a).The safety supervises system equipped with overload limiter, and on the monitor it can display the loads value, it can remind the operator to prevent the overload.
b).Before the start, the entire controller will start self checking, includes: power voltage, default phase, the effective of each safety protective device and zero position of the button.

High Reliability
a).Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.
b).Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration.
c).The main electric elements adopts the international brands include Schneider, Siemens, ABB. The protective grade of the electric control box shall no less than IP 54.
d).The wheel forged by 65 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.

Low-energy and Maintenance-free
a).The total power of crane  reduce about 30%, energy conservation and environmental protection.
b).The multi -in-one integrated transmission mechanism has less intermediate ring knot and high transmission efficiency.
c).Adopt frequency control, high and low speed ratio 1:10, work efficiency increased by more than 20%.
d).The "Maintenance-free and easy maintenance "design concept reduces customer maintenance costs.
e).It uses advanced processing technology and high -quality imported components. Its failure rate has been greatly reduced compared to traditional GB crane, helping customers reduce operating costs.

Features


Item

Description
Remark
Crane system
Strong main beams, double end trucks
Q235B Mn carbon structural   steel with seamless once forming technology more strong and elegant. Strong   box type with standard deflection
Wheel
Intermedium quenching by top   technique machinery
Lifting trolley
Work duty:A5
Independent double   electro-hydraulic drum brakes, reducer, drum, motors; Insulation IP 54 high   class;
Protection H class
Motors on   trolley
Wuxi Xindali
Gear box
Tongli
Buffer
Used for anti-collision





Specification



Capacity(kg)
Span(m)
Lifting Height(m)
Lifting speed(m/min)
Max. Wheel Load(KN)
Total Power(KW)
Total Weight(T)
5000
10.5
9
5/0.83 Double speed
36.8
5.5
3.9
13.5
39
5.8
4.9
16.5
44.5
5.9
6.3
19.5
49
6.2
8.8
22.5
54.3
11
25.5
59.5
7.2
13.8
28.5
65.5
16
31.5
74.2
19.6
10000
10.5
9
5/0.83 Double speed
64
10.5
5.8
13.5
69
10.8
6.6
16.5
74.5
8.3
19.5
79.5
11.7
10.2
22.5
87
12.6
25.5
92.5
14.9
28.5
98.7
17.5
31.5
108.6
12.2
20.8
16000
10.5
10
5/0.83 Double speed
100
18.1
6.8
13.5
104
8.45
16.5
109
10.3
19.5
113
12.7
22.5
123
16
25.5
129
18.4
28.5
140
21.8
31.5
128
19.5
25.8
20000
10.5
10
5/0.83 Double speed
112
21.1
7.4
13.5
120
9.1
16.5
126.5
11.5
19.5
132
13.7
22.5
140.8
16.3
25.5
148
22.5
19.2
28.5
81
24.9
23.8
31.5
86.6
28.3
25000
10.5
10
5/0.83 Double speed
150
21.5
9.3
13.5
157
11.1
16.5
161.5
13
19.5
169
22.9
15.9
22.5
175
18.3
25.5
185
22.3
28.5
97
25.3
25.7
31.5
102.2
30.2
32000
10.5
9
4/0.67 Double speed
191
29
10.2
13.5
205
12
16.5
210
14.2
19.5
219
17.5
22.5
113.5
30.4
20.55
25.5
118.5
24.7
28.5
123
28.3
31.5
128.8
32.8
40000
10.5
9
3.2/0.5 Double speed
232
29
11
13.5
237
13
16.5
121.5
30.4
15.4
19.5
125
18.2
22.5
130.5
22.6
25.5
135.5
26.8
28.5
138
28.8
31.5
146
32.8
35.1
50000
10.5
9
2.5/0.4 Double speed
142
31.2
12.9
13.5
146
15.1
16.5
150
18.2
19.5
154.2
33.6
21.4
22.5
160
25.9
25.5
165.5
30.25
28.5
170.5
34.6
31.5
180.5
42.6
63000
10.5
9
2.5/0.4 Double speed
179
42
14.3
13.5
183
16.9
16.5
187.2
20.2
19.5
192.6
24.5
22.5
198.2
29.1
25.5
204.5
34
28.5
211
43.2
39.3
31.5
220.5
46.9
80000
10.5
9
2/0.3 Double speed
225
42
17
13.5
229
19.9
16.5
234
24.1
19.5
237
26.2
22.5
244
31.6
25.5
249
36.3
28.5
258
43.2
42.8
31.5
267
50.3
