Overview:
Types of Travelling Gantry Cranes

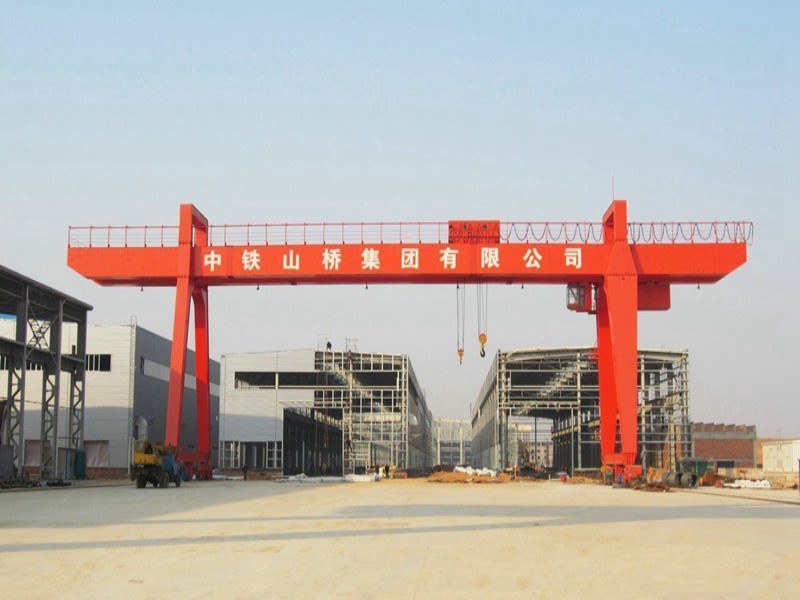

Full Gantry Cranes
Full gantry cranes are the heavyweight champions of the crane world. They have two legs that ride on a rail system installed on the ground. Can you picture the massive cranes at shipping ports? Those are full gantry cranes!
Semi Gantry Cranes
Semi gantry cranes are the more economical siblings of full gantry cranes. They have one leg with wheels that run on a track, while the other side runs on a rail mounted to a wall structure. Perfect for applications where space and budget are constraints, don't you think?
Portable Gantry Cranes
Portable gantry cranes, as the name suggests, are mobile and flexible. They can be easily moved around a workspace and are ideal for small-scale tasks. You could say they're the handyman of gantry cranes!
Features

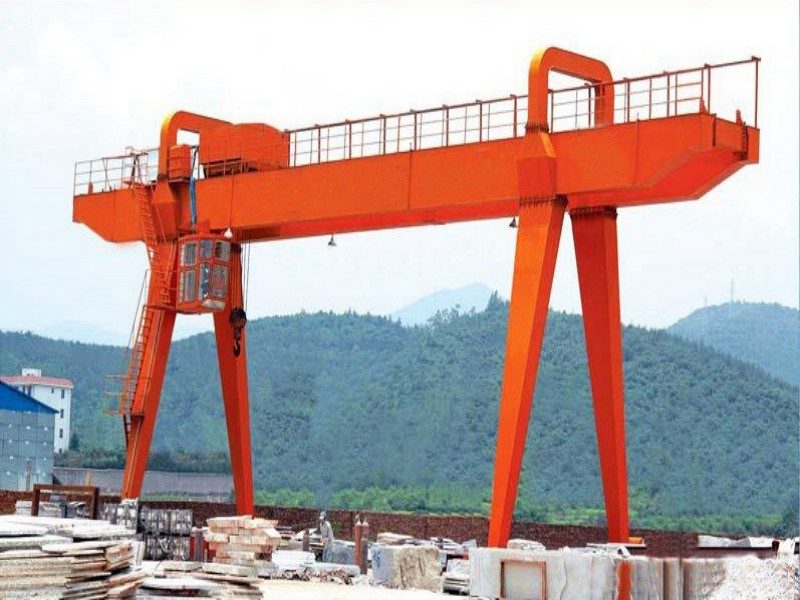

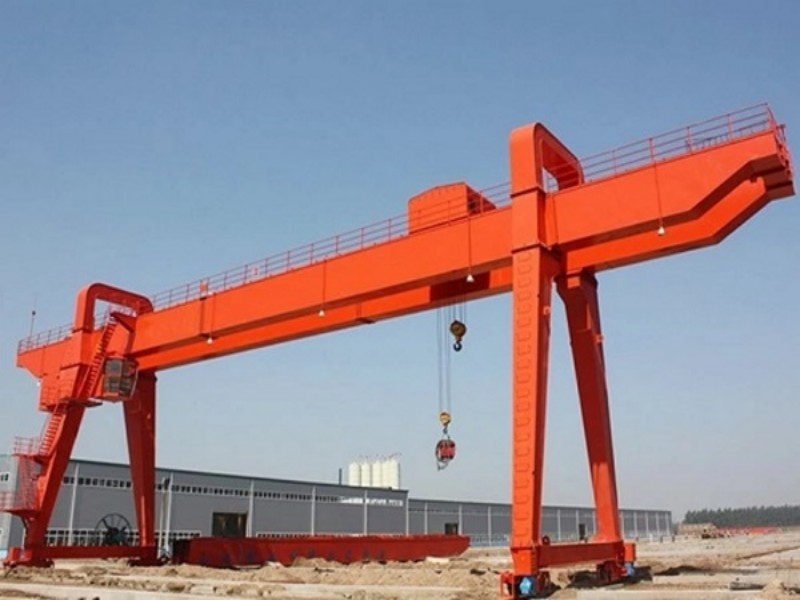

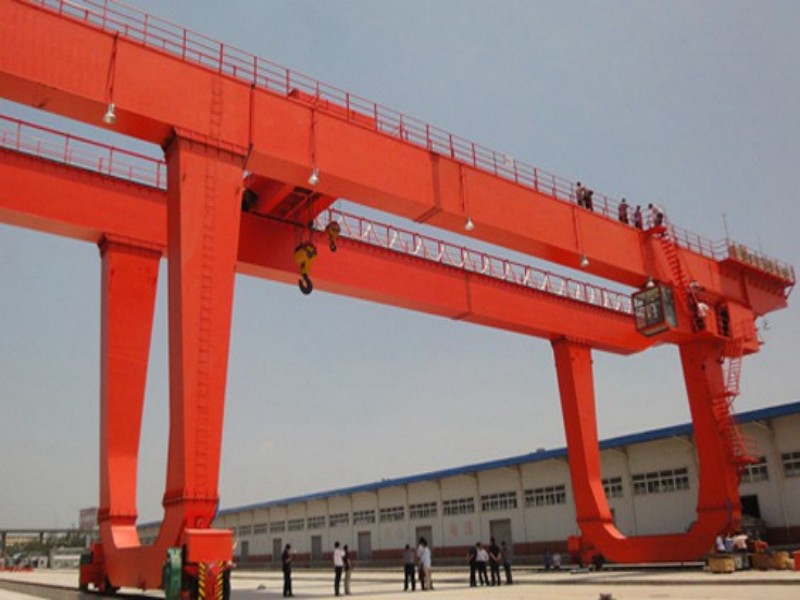

With the design concept of cutting down customer's loss caused by crane problems and downtime, SINOKO CRANE has developed the European double girder gantry crane with the main features as follow:
1) High reliability, safety, free maintenance rate;
2) Work duty: FEM2M, M5
3) Protection class: IP55
4) Insulation class: F
5) Continuing rate: 60% ( for the high class motor)
6) Cooling rate: 30% than normal crane
7) Over temperature protection: 170℃
8) Compact design, small size, low dead weight, low headroom
9) Low noise
10) Investment-saved---the workshop's civil work cost, due to crane's light dead weight and low wheel pressure.
11) Power-saved. The total motor power is much lower than normal design
Specification
Type | MG | ||||||||
Capacity(t) | Main | 10 | 16 | 20 | 32 | 50 | 75 | 100 | |
Aux | 3.2 | 5 | 5 | 10 | 20 | 20 | |||
Span | 18; 22; 26; 30; 35 | 40 | 16 | ||||||
Hoisting height(m) | Main | 11 | 12 | 12 | 12 | 22 | 22 | 17.5 | |
Aux | 16 | 14 | 14 | 24 | |||||
Hoisting speed | Main | 7.4 | 9.4 | 5.8 | 7.7 | 7.68 | 6.25 | 4.62 | |
(m/min) | Aux | 11.2 | 12.6 | 15 | 19.8 | 9.28 | 9.28 | ||
Hoisting motor | Main | YZR200L-8/15 | YAR225M-8/22 | YAR250M1-8/30 | YAR280M-8/55 | YZR315S-10/63 | YAR315M-10/85 | YZR315M-10/85 | |
Aux | YZR160L-6/11 | YZR160L-6/15 | YZR180L-6/15 | YZR250M-8/35 | YZR250M1-8/35 | YZR250M1-8/35 | |||
Crane Rail Recommended | 43kg/m 43 kg/m 50kg/m Qu80 | Qu80 | |||||||
Power source | Three phase AC 380V 50Hz | ||||||||
CASE
The Rail-Mounted Mobile Gantry Crane from Sinoko Crane is the ideal solution for versatile, heavy-duty lifting. With mobility and robust design, it’s perfect for outdoor material handling in construction, shipyards, and warehouses, offering flexibility and reliability in demanding environments.
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility
The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.
Learn More Get a QuoteFAQs
A Rail-Mounted Mobile Gantry Crane is a mobile crane that runs on rails, providing flexibility for lifting heavy loads in various outdoor environments like construction sites and ports.
The Rail-Mounted Mobile Gantry Crane’s capacity varies depending on the model, but it is designed to handle medium to heavy-duty lifting tasks, typically ranging from 10 to 50 tons.
This crane is widely used in construction, shipyards, ports, and logistics industries where heavy material handling is needed, and mobility is key.
Yes, Sinoko Crane offers customization options, including lifting capacity, span, and rail length, to meet specific operational and space requirements.
Yes, the Rail-Mounted Mobile Gantry Crane is built to perform in outdoor environments, designed to handle tough weather conditions and large-scale lifting tasks.
Unlike traditional mobile cranes, rail-mounted cranes are fixed to tracks, offering more stability and precision for heavy lifting, especially in outdoor or expansive sites.
