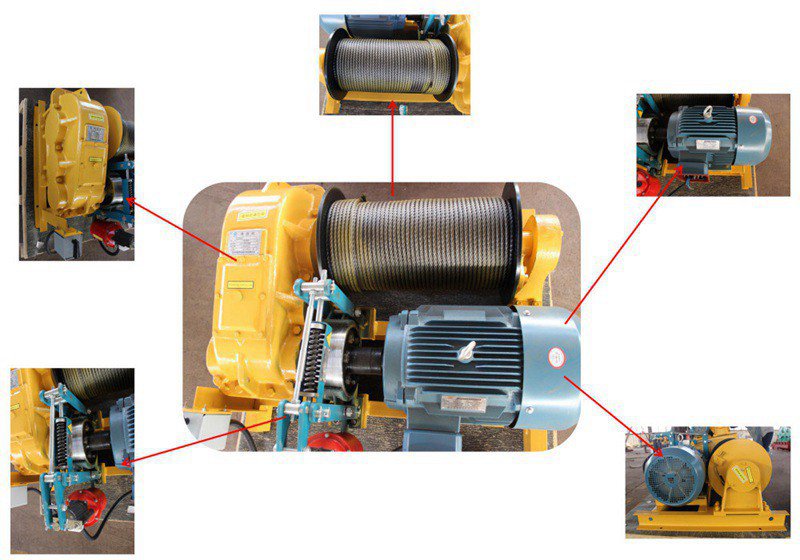

JK type high speed electric winch mainly is used for materials lifting and traction the low weight duty construction. It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine area lifting factory.
JK Type High Speed Electric Wire Rope Winch Features
1. High versatility
2. Compact structure
3. Small volume, lightweight, convenience in using and transferring
4. Driving stably
5. Very light noise
6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
7. Adjustable lifting or pulling speed for different usage environment.
8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places, etc.
JK Type High Speed Electric Wire Rope Winch Specification
| Basic parameter Type | Rated load (KN) | Rated speed (M/MIN) | Rope capacity (M) | Rope diameter (MM) | Motor power (KW) |
JK1 | 10 | 22 | 100 | 9.3 | 4 |
JK 1.6 | 16 | 24 | 150 | 12.5 | 5.5 |
JK2 | 20 | 24 | 150 | 13 | 7.5 |
JK3.2 | 32 | 25 | 290 | 15.5 | 15 |
JK5 | 50 | 30 | 300 | 21.5 | 30 |
JK8 | 80 | 25 | 160 | 26 | 45 |
JK10 | 100 | 30 | 300 | 30 | 55 |
The price of JK Type High Speed Electric Wire Rope Winch depends on the size and specifications of the winch. You can contact us to get an accurate price quote.
FAQs
High-speed for JK-Type winches typically refers to rope speeds in the range of 20–35 meters per minute. This increased speed allows quicker lifting or pulling cycles, which boosts productivity in environments where frequent moves are necessary—construction sites, machine installation, and general industrial operations. Faster rope movement also reduces idle time, making operations more efficient.
Slow-speed winches (like JM-Type) are optimized for precision, heavy loads, and controlled motion with speeds typically **5-20 m/min**. High-speed JK-Type winches trade off some torque for faster movement, usable when speed matters more than absolute lifting height or when quick handling is a priority. If your tasks include frequent lifting/unloading, or moving loads over short vertical distances, a high-speed winch might offer better efficiency. Conversely, for heavy static lifting or delicate maneuvering, slow-speed might be safer.
Higher rope speed means shorter cycle times, but it also puts more stress on the rope, drum, and motor. Fast starts or stops can introduce shock loads. Therefore, a winch designed for high-speed use must have appropriate drum size, gearing, and braking. Proper maintenance (lubrication, rope inspection, avoiding rope layering too tight) is essential to preserve safety and extend lifespan.
