Overview:

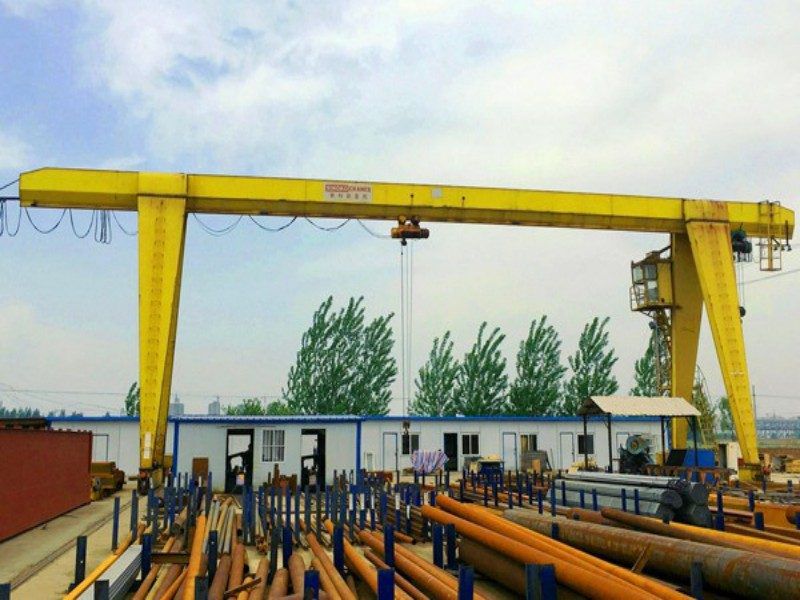

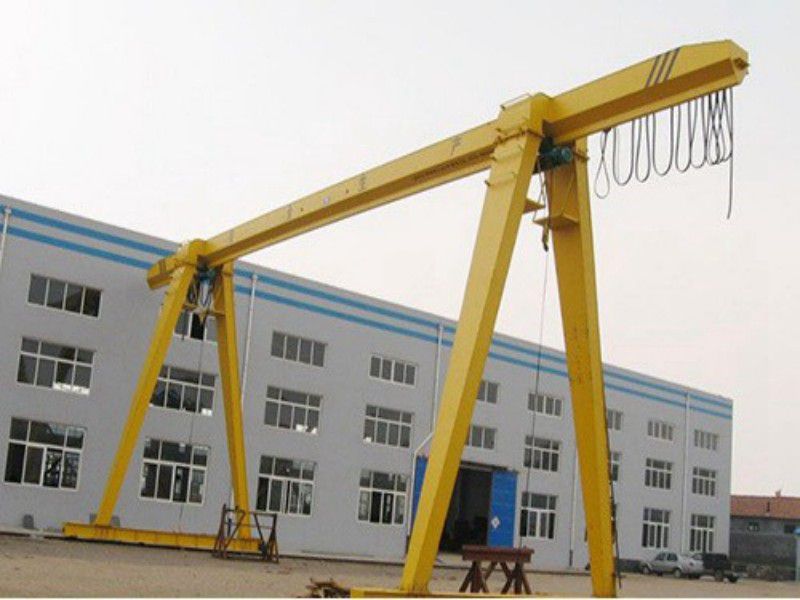

light type gantry crane is typically a single girder gantry crane. Single girder gantry cranes are suitable for light-duty lifting applications, where the loads to be lifted are not too heavy or too large. They have a simpler design and are more cost-effective than double girder gantry cranes. Single girder cranes are also easier to install and mntn. The light type gantry crane is designed to be a cost-effective and portable solution for light-duty lifting applications, and therefore, a single girder design is suitable for its intended use.

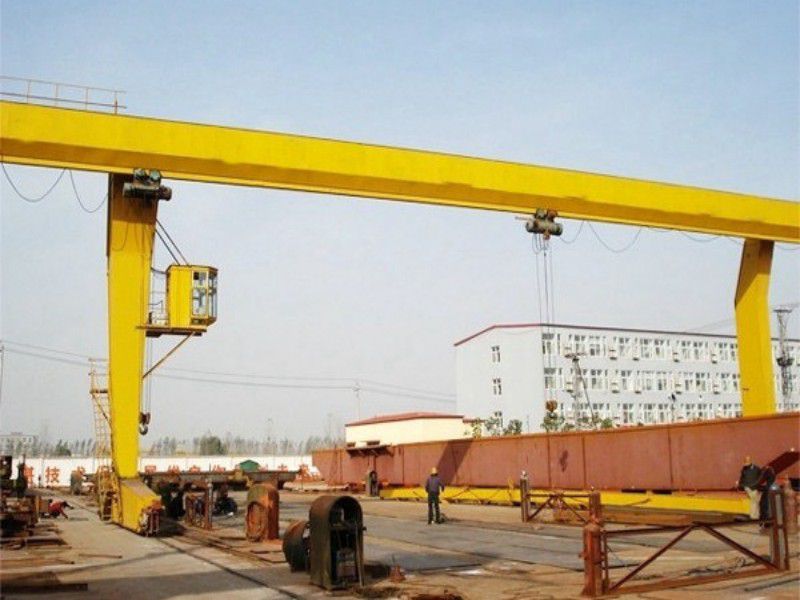

The Sinoko light type gantry crane includes MH or L model electric hoist single girder gantry crane, which is used together with CD, MD type electric hoist, It is a track travelling small and medium-sized crane, the capacity of crane from 5T to 32T, the span of crane from 12m to 30m, the working temperature within-20--+40 centigrade. This type crane is a regular crane widely used at open ground and warehouses. unload or grab material. It has 2 controlling methods. namely ground controlling and room controlling.
Features
Weight overload protection device
Top quality long time bearing polyurethane materials buffer,
Crane traveling limit switch
Voltage lower protection function
Emergency stop system
Current overload protection system and so on!
Specification
Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
Span | m | 12,16,20,24,30 | ||||||
Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8*2 | ZDY121-4/0.882 | YZD-4/0.8*4 | |||
Long travelling | Ground | ZDY21-4/0.8*2 ZDY21-4/1.5*2 | YZY22-4/1.5*2 YZR132M2-6/3.7*2 | YZR22-4/1.5*2 | YZR160M1-6/6.3*2 YZR160M2-6/8.5*2 | YZR160M1-6/6.3*2 YZR160M2-6/8.5*2 | ||
Cabin | ZDR100-4/1.5*2 ZDR112-4/2.1*2 | YZR112L1-4/2.1*2 YZR160M1-6/2.1*2 | YZR112L1-4/2.1*2 YZR160M2 | YZR160M2-6/8.5*2 YZR160L2-6/11*2 | YZR160M2-6/8.5*2 YZR160L2-6/11*2 | |||
Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
Lifting height | m | 6,9 | ||||||
Working duty | A3 | |||||||
Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
CASE
The Light-Type Single Girder Gantry Crane by Sinoko is designed for light-duty lifting, offering reliable performance and cost-efficiency. Perfect for warehouses, factories, and small-scale operations, this crane delivers precision and safety. Explore its features and pricing today!
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility
The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.
Learn More Get a QuoteFAQs
This crane is designed for light-duty tasks with a customizable lifting capacity suitable for small-scale operations.
It is ideal for warehouses, factories, workshops, and light manufacturing industries.
The crane’s single girder design is compact and efficient, making it perfect for lighter lifting tasks.
The crane comes with essential safety features like overload protection, emergency stop functions, and limit switches.
Yes, the crane is suitable for both indoor and outdoor applications, offering flexibility for various work environments.
Yes, Sinoko provides customization options to meet your specific operational requirements and layout needs.
