European Gantry Crane

European Gantry Crane

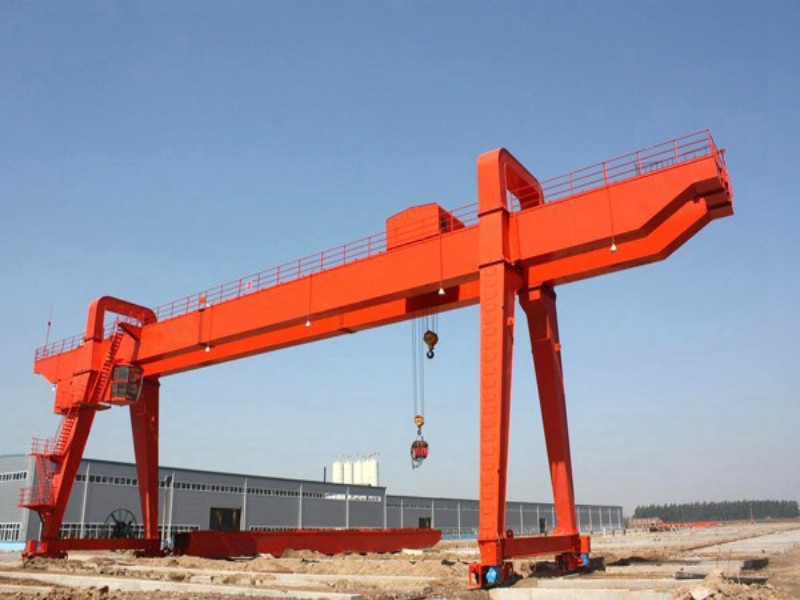

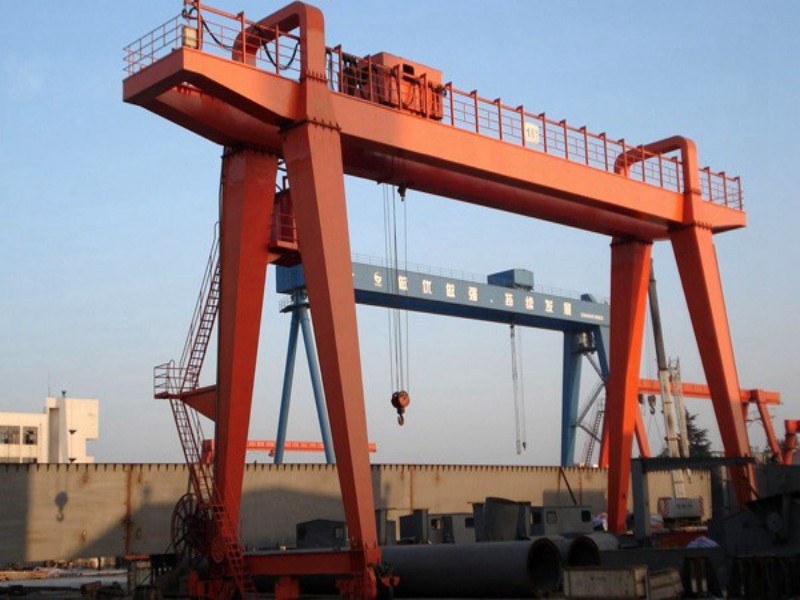

MG type European Double Girder Gantry  Crane Energy Saving is applied outside warehouse

Overview:

MG type European Double Girder Gantry  Crane Energy Saving is applied outside warehouse or railway sideways to do common lifting and unloading works.

It is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc.
The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.
Due to the design advantages, European double girder gantry  crane could help you to lower initial investment for factory construction, increase productivity, and lower efforts for daily maintenance, and reduce energy consumption, and obtain higher return on investment.
The European double girder gantry crane has the lifting capacity of 5 t to 100 ton and the work duty is A3~ A7 and the main parameters are as follow for your reference and customized crane are available :

Product type
Europe type
Lifting capacity
5~100ton
Span length
≥5m
Work duty
A3~A7
Ambient temperature
-20~50℃

Features

With the design concept of cutting down customer’s loss caused by crane problems and downtime, SINOKO CRANE has developed the European double girder gantry crane with the main features as follow:

1) high reliability, safety, free maintenance rate;
   a) work duty: FEM2M, M5
   b) Protection class: IP55
   c) Insulation class: F
   d) continuing rate: 60% ( for the high class motor)
   e) Cooling rate: 30% than normal crane
    f) Over temperature protection: 170℃

2) compact design, small size, low dead weight, low headroom
3) Low noise
4) Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure.
5) Power-saved. The total motor power is much lower than normal design

Specification



Type
MG
Capacity(t)
Main
10
16
20
32
50
75
100
Aux

3.2
5
5
10
20
20
Span
18; 22; 26; 30; 35
40
16
Hoisting height(m)
Main
11
12
12
12
22
22
17.5
Aux

16
14
14
24
Hoisting speed
Main
7.4
9.4
5.8
7.7
7.68
6.25
4.62
(m/min)
Aux

11.2
12.6
15
19.8
9.28
9.28
Hoisting motor
Main
YZR200L-8/15
YAR225M-8/22
YAR250M1-8/30
YAR280M-8/55
YZR315S-10/63
YAR315M-10/85
YZR315M-10/85
Aux

YZR160L-6/11
YZR160L-6/15
YZR180L-6/15
YZR250M-8/35
YZR250M1-8/35
YZR250M1-8/35
Crane Rail Recommended
43kg/m   43kg/m  50kg/m  Qu80
Qu80
Power source
Three phase AC 380V 50Hz
