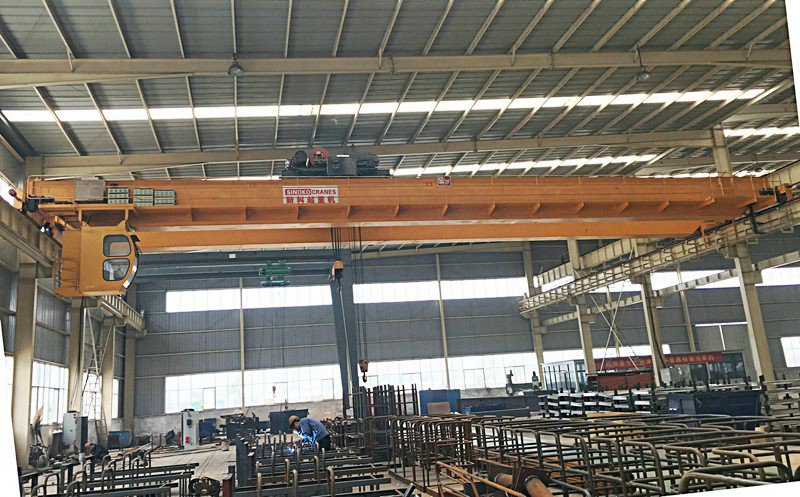

New Design Double Girder EOT Crane

New Design Double Girder EOT Crane

Double girder EOT crane mainly consists of bridge, end girder travelling mechanism, winch trolley and electrical appliances.

Overview:

Double girder EOT cranemainly consists of bridge, end girder travelling mechanism, winch trolley and electrical appliances.
They are applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse, in light textiles or food industry. Advanced equipment and manufacturing shop is the guarantee. We are committed to produce the best quality products.

Features

Double girder EOT cranemainly consists of bridge, end girder travelling mechanism, winch trolley and electrical appliances.

1. Design: Compact dimensions, low weight, easy to operate and easy to maintain;
2. Motors: Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection
3. Gear Boxes: Precision flat helical spur gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil/grease lubrication.
4. Brakes: Single/ Dual-disc electromagnetic DC brakes featuring automatic braking on power failure.
5. Electrical Panel: Modular design, covering a very wide operating range.
6. Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.





Specification

We are ready to discuss with customers the supply of overhead /bridge cranes with parameters, mode of operation and special demands.

Kindly please provide the following information when sending enquiry to us.
1.      Lifting capacity ______ton
2.      Span _______meters (it is center to center distance between railways)
3.      Lifting height ______meters (it is the distance from center of hook to floor)
4.      Travelling length _____meters
5.      Industrial voltage _____V, _____HZ, 3Phases
6.      Control mode
       A.    pendant control   B. remote control   C. cabin control
7.      Do you also need us to supply rail and bus bar?
        A.    Yes    B. No
8.      What is the main lifting material?
