Project Summary

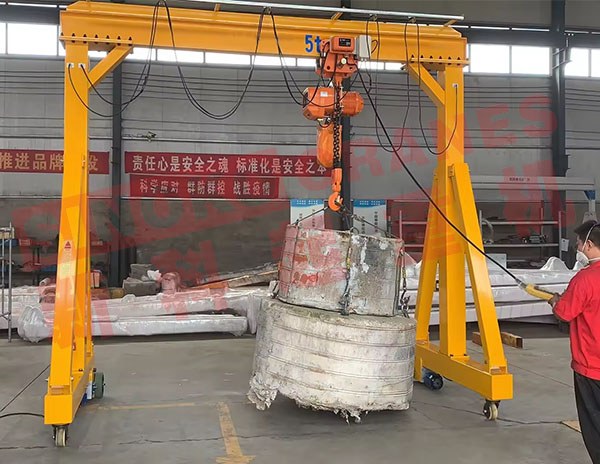

A Spanish crane manufacturer has purchased a
5-ton electric hoist gantry crane (model PT3-5t) to enhance its mechanical service capabilities. The equipment features 360° gantry rotation, meets EU market certification requirements, and comes with complete technical documentation and compliance certificates.
This purchase will help the client expand its professional lifting services business and provide more comprehensive lifting solutions.
Client Profile
| Parameter | Details |
| Country | Spain |
| Industry | Lifting Machinery Service |
| Customer Type | Local Crane Manufacturer |
| Quantity | 1 unit |
| Date | April 2025 |
Challenge
The Spanish crane manufacturer faced several challenges in procuring a gantry crane for their operations.
Operational Requirements:
5-ton rated capacity for industrial lifting applications
360° gantry rotation for comprehensive workspace coverage
6,000mm span for adequate workspace coverage
6,000mm lifting height for typical industrial applications
Wireless remote control for enhanced operator safety and flexibility
Quality and Compliance Requirements:
The crane needed to meet strict European quality standards and regulatory requirements:
Complete documentation and certification for regulatory compliance
Professional-grade construction for industrial durability
Compliance with European safety standards and regulations
Reliable performance for continuous service operations
Professional manufacturing quality for European market
Technical Specifications:
Electric hoist gantry crane system (Model PT3-5t)
Electric hoist system with 7.5kW motor power
European power specification: 380V/50Hz/3P for compatibility
Professional-grade construction for demanding applications
Complete certification package for regulatory approval
Market Competitiveness:
As a local crane manufacturer serving the lifting machinery service industry, the customer needed:
High-quality equipment to support premium service delivery
Reliable performance to maintain customer satisfaction
Comprehensive documentation to facilitate regulatory approval
Professional manufacturing quality for competitive positioning
Versatile lifting capabilities to serve diverse client needs
Gantry Crane System Specifications
Gantry Crane System
| Specification | Value |
| Model | Electric Hoist Gantry Crane |
| Rated Lifting Capacity | 5t |
| Overall Width | 5,796mm |
| Overall Height | 5,969mm |
| Span | 6,000mm |
| Lifting Height | 6,000mm |
| Leg Height | 5,000mm |
| Gantry Rotation Angle | 360° |
Hoist
| Specification | Value |
| Model | 5t-6m |
| Lifting Speed | 8m/min (Single Speed) |
| Motor Power | 7.5kW |
Travel Systems
| System | Speed | Motor Power |
| Gantry Travel | 20m/min | 2.2kW × 2 |
| Trolley Travel | 20m/min | 0.4kW × 2 |
Control & Power
| Specification | Value |
| Control Method | Wireless Remote Control |
| Power Supply | 380V/50Hz/3P |
Solution Provided
Delivered a complete
5-ton electric hoist gantry crane (Model PT3-5t) featuring 360° gantry rotation and wireless remote control. The crane, equipped with a professional
Electric Hoist and compatible with European 380V/50Hz power, is supplied with full documentation and CE certification to enhance service operations and material handling capabilities.
Project Results
5-ton lifting capacity fully operational with 360° rotation
6,000mm span and height coverage
Wireless remote control enhanced operator safety
8m/min lifting speed, 20m/min travel speeds
7.5kW motor power delivering reliable performance
Key Customer Benefits:
Enhanced service capabilities in lifting machinery market
Complete workspace coverage through 360° gantry rotation
Improved operator safety with wireless remote control
CE certification and full documentation for regulatory compliance
Industrial-grade construction ensuring continuous operation
Business Impact:
Competitive positioning through professional-grade equipment
Expanded market opportunities with European compliance
Improved customer satisfaction and retention
Reduced downtime through reliable performance
Enhanced operational flexibility and efficiency
Long-Term Value:
Comprehensive lifting capabilities for diverse applications
Regulatory compliance enabling market access
Professional quality supporting premium service delivery
Foundation for ongoing partnership and future projects
