Your are here: Home > Products > Electric Hoist > Wire Rope Hoist > Electric Open Winch Trolley for Overhead Crane
1. Excellent design, compact structure, light weight, low headroom
2. Flexible driving with hardened gear box
3. Stepless control smooth running
4. Real-time safety monitoring
5. Standardized features makes performance extremely stable

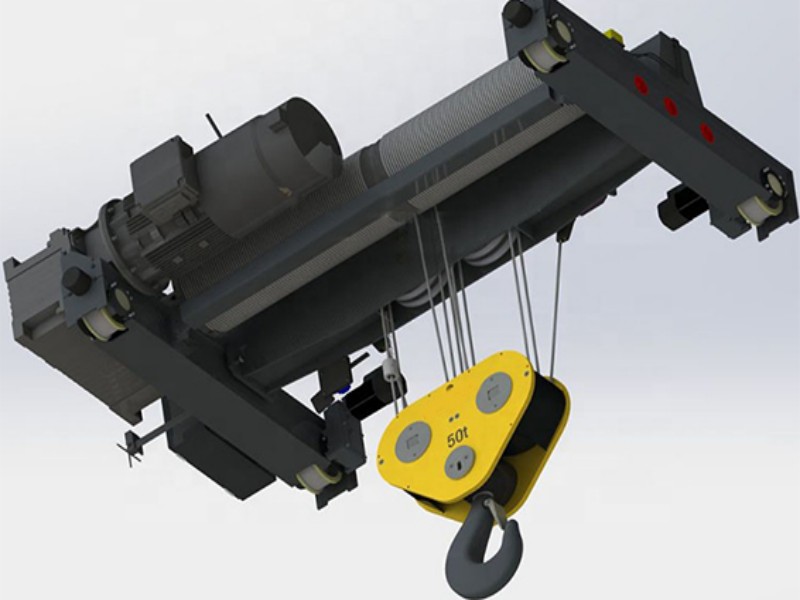

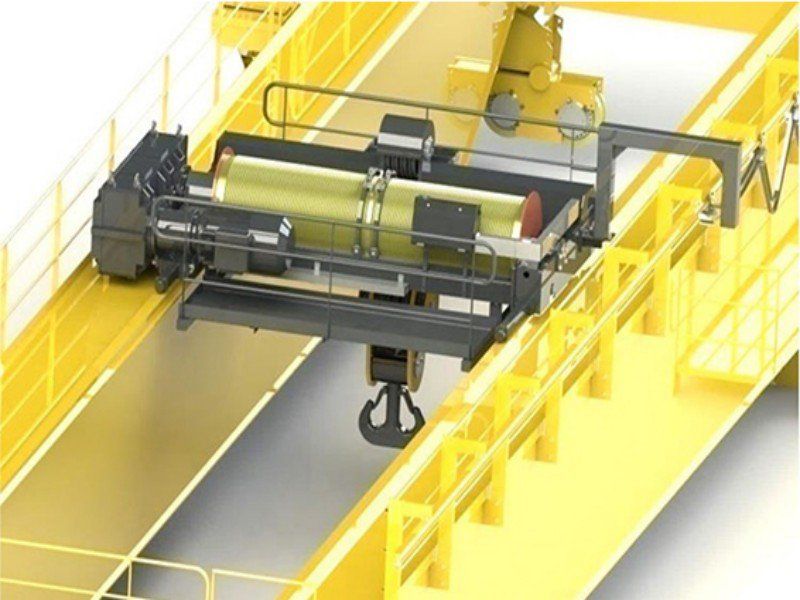

The Sinokocranes Brand FEM Standard Electric Open Winch Trolley for Overhead Crane is an ideal material lifting equipment applied in steel mill, paper mill, general manufacturer, power plant, port, petro-chemical, aerospace, non-ferrous industries, army, mining and oil fields, offshore platform, shipyard, car makers, waste-to-energy factory, nuclear etc.

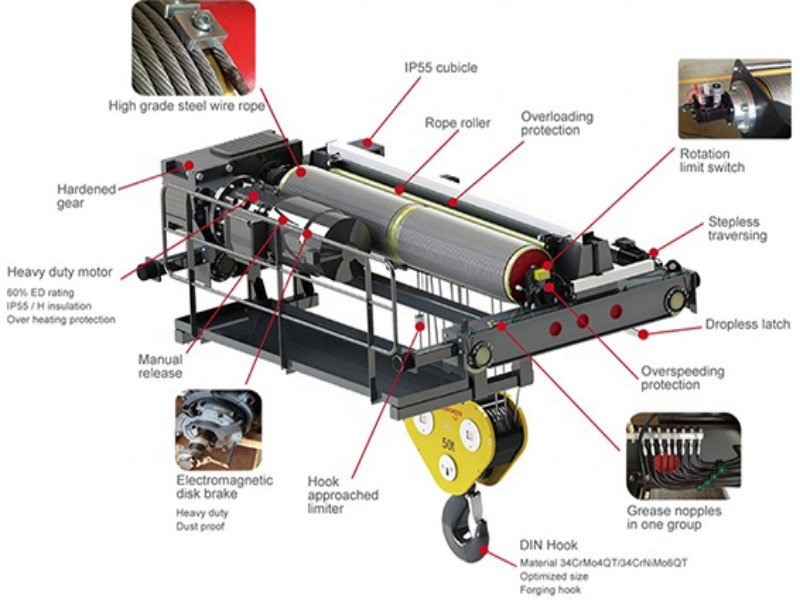

1. | Lifting motor | Heavy duty motor 60%ED rating Variable frequency motor Over heating protection |
2. | Lifting gear box | CrNiMo alloy harden gear(HRC60) Side hanging design |
3. | Lifting brake | Double brake type available Electric magnetic brake inside Electric hydraulic thruster type with ZPMC brand |
4. | Reel | Reliable rope guider & anti-deflection High strength galvanized steel wire rope 2160N/mm2 Heavy blocks densely covered to avoid wire rope loosing |
5. | Hooke Assembly | 34CrMo4QT/34CrMo6QT, Optimized size Forging hook |
6. | Electric panel | IEC standard testing Schneider brand or as required Aviation plug no wiring connection at user’s site |
7. | Smart function | 2-step adjustable rotation limit switch Hook approached limit switch Grease nipples in one group Dropless latch Over speeding protection Inching / Micro-speed / Anti-sway / brake-open holding function HMI and safety monitoring system |
