Overview:
A Shape Double Girder Gantry Crane Specification:
1. Capacity: 5 to 80tons
2. Span: 18 to 40 meters.
3. Working class: A5, A6, A7.
4. Working temperature is -20--+40 centigrade.
5. Control methods: ground or cabin control.

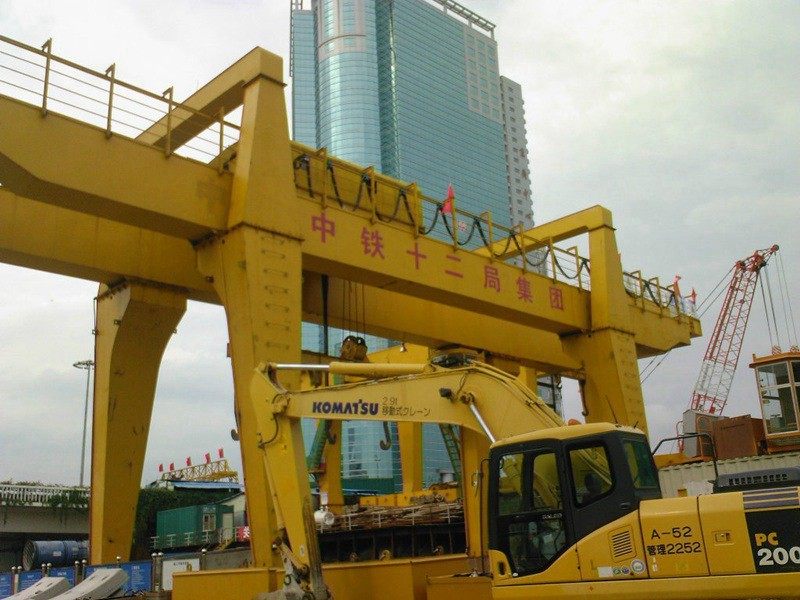

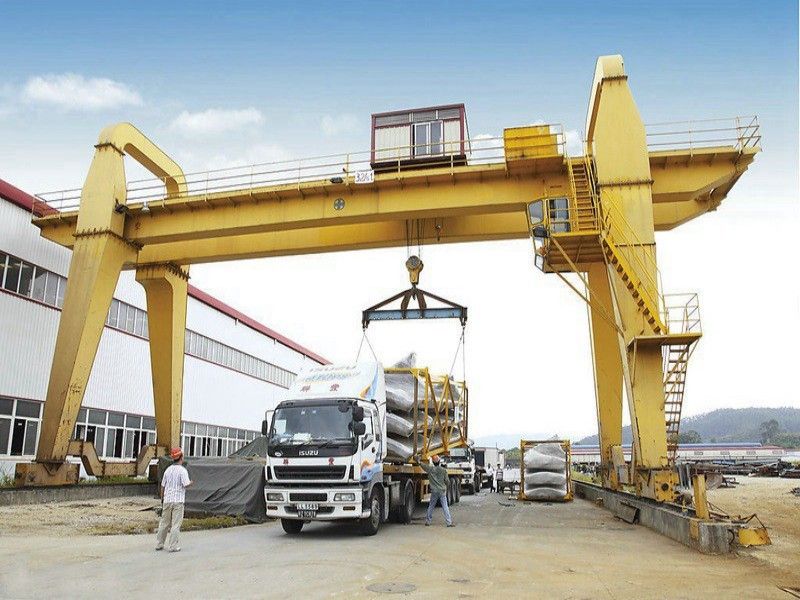

I. A Shape Double Girder Gantry Crane Introduction:
1. This gantry crane is widely used together with winch or trolley for lifting device.
2. It is a medium and heavy size crane which travels in track.
3. Structure: main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch
4. Power is supplied by cable or slide wire.
5. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

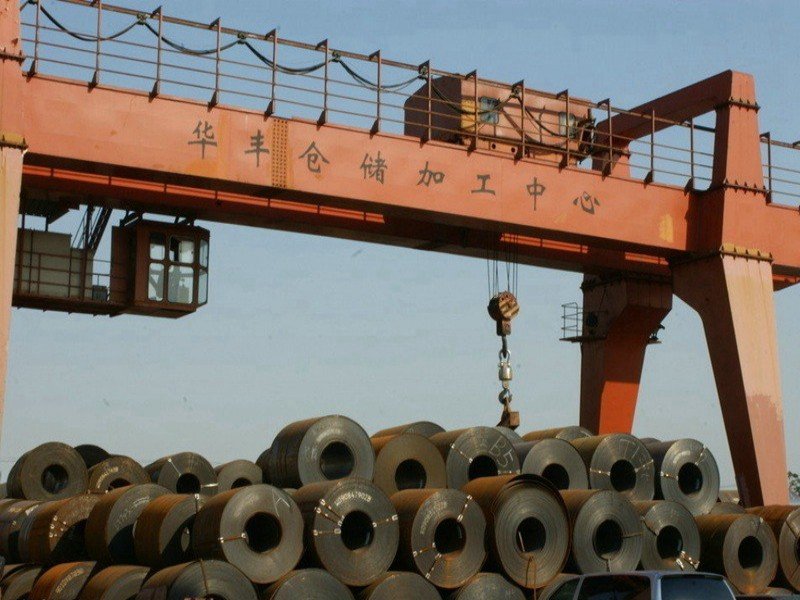

II. A Shape Double Girder Gantry Crane Application:
workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.
III. A Shape Double Girder Gantry Crane Environmental Conditions:
1.The temperature in the working environment should be in the scope of -20DC to 45 DC and the relative humidity is not higher than 95%(with dew).
2.During work, the wind speed should be no higher than 20m/s; and during non-work, the wind speed should be no higher than 44m/s.
3.The crane travelling lane is supposed not to slope more than 1% and no more than 3% for local slope. The ground slope on the two sides of the span should be in the same direction, that is to say, both upslope or downslope at the same time.
IV. A Shape Double Girder Gantry Crane Details:
Main beam | High technique, torsion-free box girders, no welding one whole type, strong and beautiful. |
Electrical parts | Siemens brand/Schneider brand |
Motors | Frequent starting , reversing & braking, dust proof construction foot / flange mounted TESC / TEFC , Sq. cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions. |
Brakes | Independent Hydraulic Brake |
Gear Box | Accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel, smooth operation & long life, can equipped with SEW/ABB brand high quality gear box |
Electrical Panel | Modular design, ease to install and maintain, reliable operation, fuses less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading |
Limit Switch | Safety limit switches for stoppers will be provided to prevent over traveling in all motions |
Safety feature | Overload protection. Main lifting motor with thermal protection. Hooks with latch. Rubber buffers. Protective earthling. Crane switch and travel end switch. Emergency switch can stop all movement when any dangerous happened. Sub-assemblies characteristic are tested before assembly. All cranes must be pre-assembled and tested before leaving factory and offer the certification of tes |
Technical Parameter for A shape double girder gantry crane manufacturer
Lifting Capacity | T | 16/3.2 | 20/5.0 | 32/8.0 | 50/10.0 | 75/20.0 | ||
Span | M | 18-35 | ||||||
Max. Lifting Height | Main hook | M | 10/12 | |||||
Aux hook | 10.6-12.6 | 10.6-12.6 | 10.7-12.7 | 11.1-13.1 | 11.1-13.1 | |||
Working System | A5 | |||||||
Speed | Hoisting | Main | m/min | 15.3 | 15 | 13.2 | 5.9 | 6.25 |
Aux | 22 | 19 | 17 | 13.2 | 9.28 | |||
Trolley Travelling | 44.7 | 44.7 | 38.6 | 36 | 38.9 | |||
Crane Travelling | 30-35 | 34.5-32.9 | 52.53 | 45-38.6 | 38.5-32.6 | |||
Weight | Trolley | t | 7.1 | 8.1 | 11.7 | 16.8 | 29.4 | |
Total Weight | 92-142 | 105-148 | 92-142 | 111-156 | 189-245 | |||
Max. Wheel Load | 275-369 | 341-435 | 275-369 | 392-483 | 314-361 | |||
CASE
Discover how the A-Shape Double Girder Gantry Crane improves efficiency and safety in heavy-duty lifting operations. Designed for large-scale industrial projects, it offers exceptional stability, high load capacity, and customizable features for diverse operational needs.
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
The A-Shape Double Girder Gantry Crane is designed for heavy lifting in various industries, including construction, shipbuilding, and material handling, offering high stability and load-bearing capacity for efficient operation.
This crane can typically handle loads ranging from 5 tons to 500 tons, depending on the model and customization, making it ideal for lifting heavy materials and equipment in large-scale industrial settings.
The A-shape design provides enhanced stability and durability, with better distribution of weight and reduced deflection, ensuring smooth and safe lifting operations under heavy loads.
Yes, the crane is customizable in terms of span, lifting height, and lifting speed, ensuring that it meets specific operational needs for various industries and environments.
This crane enhances efficiency by offering faster and more precise lifting movements, minimizing downtime and improving productivity in demanding industrial environments like factories, ports, and shipyards.
Regular maintenance includes checking the structural integrity, inspecting electrical and mechanical systems, and ensuring the crane’s safety features are functioning correctly to ensure safe, reliable operation.
